SK 47/17

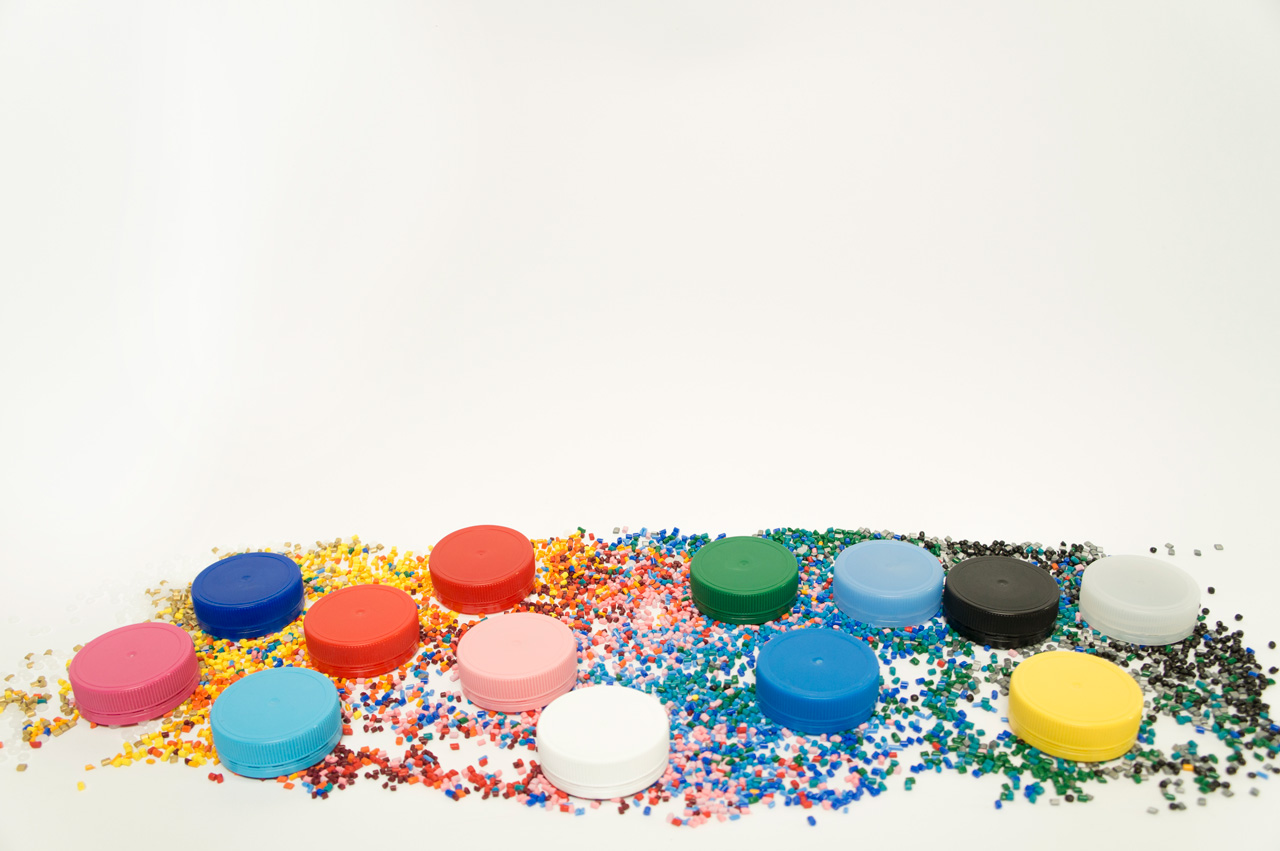

Jednodelni zatvarač koji odgovara PET bocama pruža čvrsto zatvaranje 48mm širokom grlu boce. Sigurnosni prsten omogućuje pouzdano otvaranje nakon prve upotrebe. Namenjen je za boce od 5l.
Tehničke specifikacije:
|
Product description |
3440- Screw closure INTER BEAD Band 48 mm 3 threads |
|
Product hierarchy |
|
|
Customer drawing no. |
3440 |
|
Neck material |
PET |
|
Neck finish drawing no. |
PT 4B-41V01 Ra PT 48-41 V01 Rb |
| Packaging |
carton content 1700 pcs./carton carton size (LxWxH) 380 x 380 x 580 mm pallet size 800 x 1200 mm cartons/palete 20 |
|
Weight |
7,25 gramms |
|
Resin type |
pourer HDPE screw cap additional part |
| Additions |
gasket / liner other parts |
| Storage temperature |
minimum 10 °C maximum 28 °C |
| Closure temperature before capping |
18 - 28 (closures need to be stored min. 24 hours at required temperature before capping) |
| Static torque of capping head |
- Nm |
|
Head pressure |
- N |
| Head speed |
minimum - rpm maximum - rpm |
